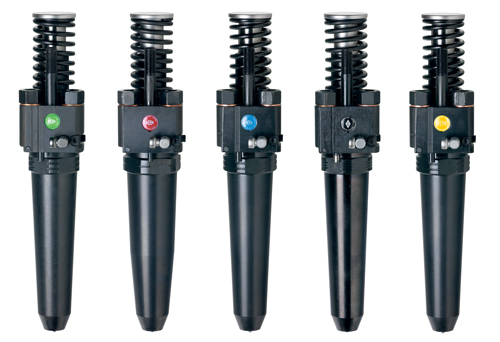

EMD-injectors
image-59
image-60
image-61
image-62
image-63
image-64
INJ. NEW PART NO. UTEX PART NO. OBSOLETE NEW RPM ENGINE APPLICATION CONFIG BODY I.D. (GROOVE TYPE) KIT SPRAY TIP P&B NUMBER ECOTIP -1 ECOTIP SUPER-STACK
40084722 8478049 5229295 567A, B,C Sm – ng 6-.0120-150 5227853 40082998 4991051
40084726 9081163 5229500 645E Sm – ng 6-.0110-150 5227853 40082999 4991052
40084719 8478045 5229200 645E, E8-900 1N 5-.0134-160 5228236 40082996 4991049
40084721 8478048 5229290 567D1 1N 6-.0120-150 5228236 40082998 4991051
40084727 9081164 5229510 645E-835 1N 6-.0110-150 5228236 40082999 4991052
NONE NONE NONE 645E TIER 0 1N 5-.0134-160 4991332 4991308 4991313
NONE 8478050 5229305 567D4-720 2N 6-.0110-150 5228574 40082999 4991052
NONE 8478051 5229310 567D4/D5-900 2N 5-.0134-160 5228574 40082996 4991049
40084720 8478046 5229250 645E3,4,5,7-900 3N 6-.0134-160 5228894 40082997 4991050
NONE 8478052 5229315 645E4-720 3N 6-.0120-150 5228894 40082998 4991051
NONE NONE NONE 645E3 TIER 0 3N 6-.0134-160 ?????? 4991310 4991314
40084723 8478053 5229320 645EB/EC 1W 7-.0140-160 5229011 40083000 4991053
40084724 8478054 5229325 645EA,EB-720 1W 7-.0120-160 5229011 40083001 4991054
40084725 8478055 5229335 645E,E3B,E3C,9B 1W 6-.0150-160 5229011 40083002 4991055
NONE NONE NONE 645E3B TIER 0 1W 6-.0150-160 4991320 4991299 4991303
40084728 9333858 5229710 645F/FB/F3 2 W 6-.0150-160 5229705 40083002 4991055
40084714 9561950 5226210 645F3B RR only 2 W 6-.0150-160 5226464 40083002 4991055
40084715 9576569 5226430 20-645FB 2 W 7-.0140-160 5226464 40083000 4991053
40084731 40043489 5235585 645F 8,12,16 2 W 6-.0150-150 5226464 40082995 4991048
40084718 NONE 5226785 645FB-750 2 W 7-.0120-160 5226464 40083001 4991054
NONE NONE 5226775 645-900 2 W 6-.0150-160 5226198* 40083002 4991055
NONE NONE 5226470 645-720 2 W 7-.0120-160 5226198* 40083001 4991054
NONE NONE 5236671 645E4B-720 2 W 7-.0120-160 5229705 40083001 4991054
40084713 9576569 5226150 645 2W 7-.0140-160 5229705 40083000 4991053
NONE NONE NONE 645 F7B (IMO) 2W 6-.0150-150 5226198* 40082995 4991048
NONE NONE NONE 645FB-720/750 2W 7-.0120-150 5229705 40098025 4991275
NONE NONE NONE 645F3B TIER 0 2W 6-.0150-160 ?????? 4991299 4991303
40084717 9565086*1 5226700 710G3,7 Lg – ng 6-.0152-150 5226128 40082992 4991045
40084729 40027607 5227000 710G3A,7A Lg – ng 7-.0150-150 5227003 40082993 4991046
40084730 40028663 5227285 12-710G3A Lg – ng 6-.0162-150 5227003 40082994 4991057
40084732 40044488 5235595 710G3B,7B Lg – ng 6-.0165-150 5227003 40083003 4991056
710G3B TIER 0 Lg – ng 6-.0165-150 4991182 40083003 4991056
710G7B Lg – ng 6-.0165-150 4991265* 40083003 4991056
8255750 5228380 567DF
8478172 5228595 567DF
5229280 567
8478047 5229285 567
8478076 5229300 567
